EUROPEAN MULTI-APPLICATION EMV CARDS
Crédit Agricole has undertaken one of the world’s biggest multiapplication EMV® issuing projects to date. Every fourth cardholding bank customer in France is receiving new chip-enabled credit and debit cards for domestic and international use from Crédit Agricole. The project has been one of the first to implement Common Personalization—a new standard introduced by Visa International and set forth by EMVCo.
Crédit Agricole has successfully achieved to manage the high level of security required for issuing EMV® cards with the implementation of CardInk while maintaining the highest level of flexibility in the production line.”
Fabrice Piau,
Security Officer, CEDICAM
Single Card – Multiple Applications
CEDICAM issues multi-application smart cards which carry the French applications B0’ and Moneo, as well as both a domestic and an International EMV® debit and credit application - either VISA or MasterCard depending on the card brand. CEDICAM is an experienced pioneer in smart cards and is very successful in leveraging the benefits of multi-application smart cards, which create value to both card holders and card issuers over single-application cards.
One of the features that provide smart card holders with real value is the possibility of having several applications residing on one payment card. It also adds customer value by offering card holders a wide range of functions. The issuing banks benefit from multiapplication cards because they can target individual card holders, which is essential for building strong customer relationships and reducing marketing costs.
Cryptomathic meets the requirements of CEDICAM through a scalable and flexible data preparation solution while exceeding security standards imposed by the payment scheme providers and the national banking organisation.

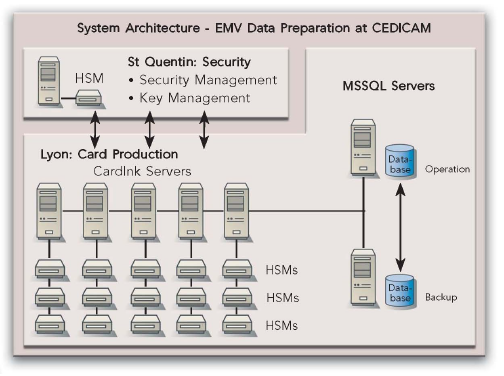

CardInk is developed as a two-part client/server system. While the cryptographic keys and overall security are managed in CEDICAM’s main location, the production site is located in another area of France. This physical separation between operations is possible through the configuration of separate CardInk installations which support one-time set-up and remote management.
The ultimate production requirement at CEDICAM is almost 100,000 multi-application smart cards per day. This high capacity is ensured by a solution consisting of several CardInk servers that operate in parallel. Each server is capable of preparing data for several thousands of multi-application smart cards each hour. The servers are synchronised and the production environment is very redundant. The approach is modularly scalable and allows for higher capacities in relation to future issuing requirements.
With the support for DDA, the cards issued by CEDICAM have maximum security. DDA denotes the type of authentication used during transactions and is the highest possible level of security within EMV®. DDA requires that a "private" key used for securing card integrity and encrypting information, e.g. PIN-codes, resides on each card.
To accommodate this functionality, CEDICAM has chosen an architecture consisting of five CardInk servers with fifteen IBM4758 HSMs (Hardware Security Modules). HSMs are used to handle cryptographic data in a highly secure tamper-resistant environment so that the keys will never be disclosed in clear text.
The CardInk security architecture enables CEDICAM to manage cryptographic keys on a CardInk key management server and distribute them onto CardInk production servers by encrypting key files.
On the key management server, keys are loaded into HSMs via secure PIN-pads that are interfaced directly with the HSM. This adds security and eliminates risks as CEDICAM only uses trusted clients.
The standard security of CardInk is also compliant with CEDICAM’s internal procedures, where security management and daily production are physically separated. Audit logs are MAC’ed and encrypted, and the secure client server communication uses AES for encryption.
Finally, CardInk supports exchange of cryptographic keys with the French bank organisation Groupement des Cartes Bancaires. This exchange is mediated through the BULL system CGDC-BNTng.
CRYPTOMATHIC CARDINK

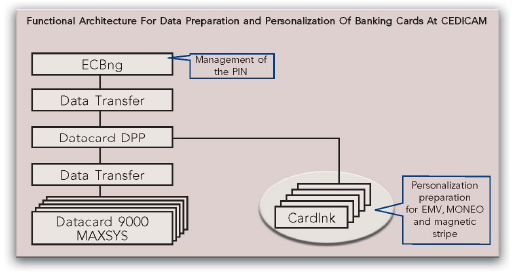

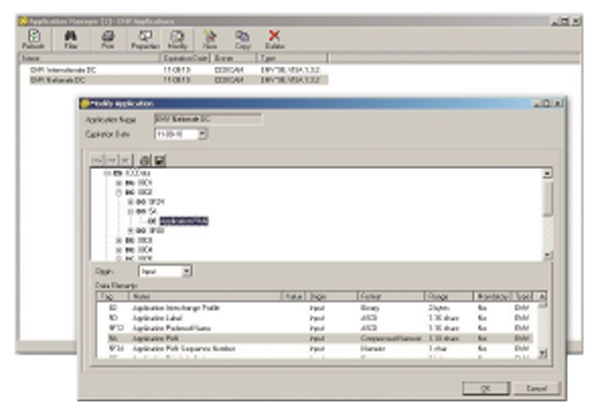

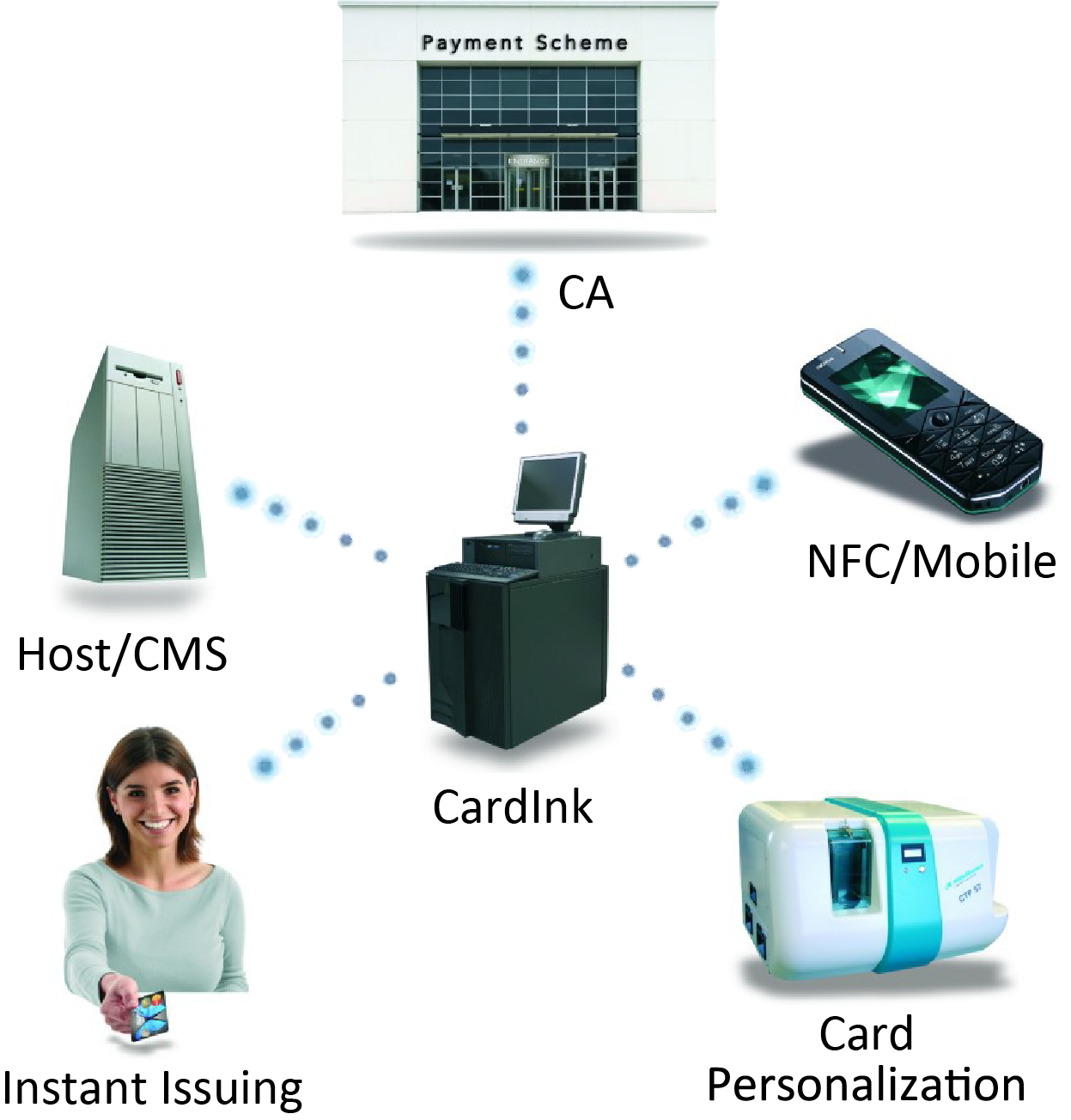

Cryptomathic CardInk is a data preparation system (data formatting and key management), which offers exactly that while maintaining flexibility to meet any card issuing environment (e.g. mag stripe, chip, single- and multi-applications, instant issuing). CardInk is implemented by bureaus, data processors and card issuers alike and is the only major system that is both HSM vendor and card platform independent. This ensures that customers are not tied in to one particular technology and hence ensures a high return on investment. Cryptomathic CardInk supports a wide number of applications including MasterCard, Visa, AmEx and integrates with systems such as those from ACI Worldwide, Böwe Cardtec, Mühlbauer and Datacard. Cryptomathic CardInk is very scalable and not only perfect for high volume central issuance but it is also suitable for instant issuance.
CRYPTOMATHIC CKMS

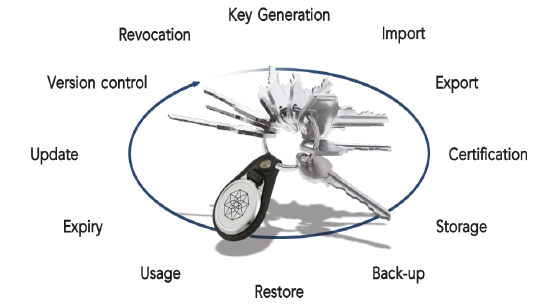

Cryptomathic’s Crypto Key Management System (CKMS) provides clients with a centralised solution to flexibly manage a very large number of keys throughout their entire life cycle - without drowning in work.
CKMS has been designed to reduce the enormous increases in work-load and costs associated with traditional key management through its flexible and automated protocols that allow, for example, keys to be securely pushed to any key distribution target as and when required and for key custodians to use asynchronous log-on to projects to add components securely, reducing the need for key ceremonies.
CKMS easily manages both symmetric keys and asymmetric key pairs using CKMS Key Projects—representation of the current state of a set of keys together with their history and general lifecycle management.
CRYPTOMATHIC EMV® CA
The Cryptomathic EMV CA is an essential service component for EMV card authentication. The main purpose of the EMV CA is to allow a central authority to issue and manage the certificates of Card Issuers within a given region.
EMV card authentication is based on PKI (Public Key Infrastructure) but unlike traditional PKI, which is based on a standard called X.509, EMV is a standard of its own. Even though EMV is a proprietary standard it is widely used across the globe, with billions of EMV smart cards issued since its initial roll-out. Cryptomathic EMV CA is designed in a flexible client-server structure enabling the payment scheme provider to tailor the system to the specific needs of its organisation.
The Cryptomathic EMV CA professionally manages all the Issuer and Certification Authority’s tasks and offers all the features expected from professional trust management software including, multiple CAs, secure user administration, and performance all sensitive cryptographic operations within HSMs.
Crédit Agricole has undertaken one of the world’s biggest multi-application EMV issuing projects to date.
Every fourth card-holding bank customer in France is receiving new chip-enabled credit and debit cards for domestic and international use from Crédit Agricole.
The project has been one of the first to implement Common Personalization—a new standard introduced by Visa International and set forth by EMVCo.
